The San-o-Sub Twin Tank Bands for Faber Cylinders come with tank band bolts. The three different sizes result in three different centre to centre manifold spacings.

These heavy-duty twin-cylinder bands come in three different sizes:

• 140 mm (5.5 in) diameter for Faber 5, 7 and 7 HP litre cylinders
  (also for 7L HP cylinders) - TANBA1
• 178 mm (7 in) diameter for Faber 9, 10.5, 12.2 Std, 12 HP litre cylinders
  (also for 12L HP cylinders) - TANBA2
• 204 mm (8 in) diameter for Faber 12.2 COMP, 15 and 18 litre cylinders - TANBA3

The three different cylinder centre-to-centre spacings are approximately:

• 150 mm (5.9 inch)
• 192 mm (7.6 inch)
• 212 mm (8.4 inch)

These heavy duty bands are made of marine-grade stainless steel and are 60 mm wide. The bolts are 150 mm (6 in) long and 8 mm in diameter and come complete with 2 nuts, 1 nyloc nut, 3 washers and 1 wing nut. The bolts, nuts and washers included with these bands are also all made of stainless steel.

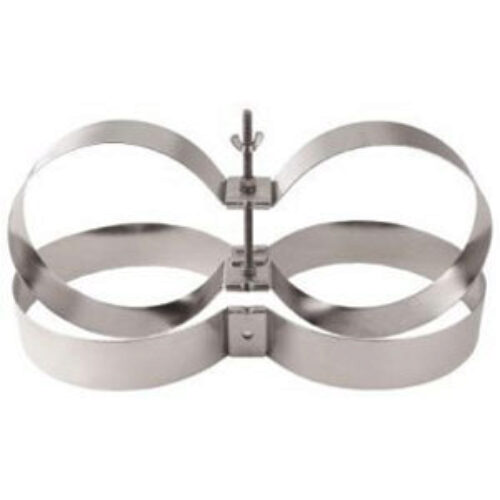

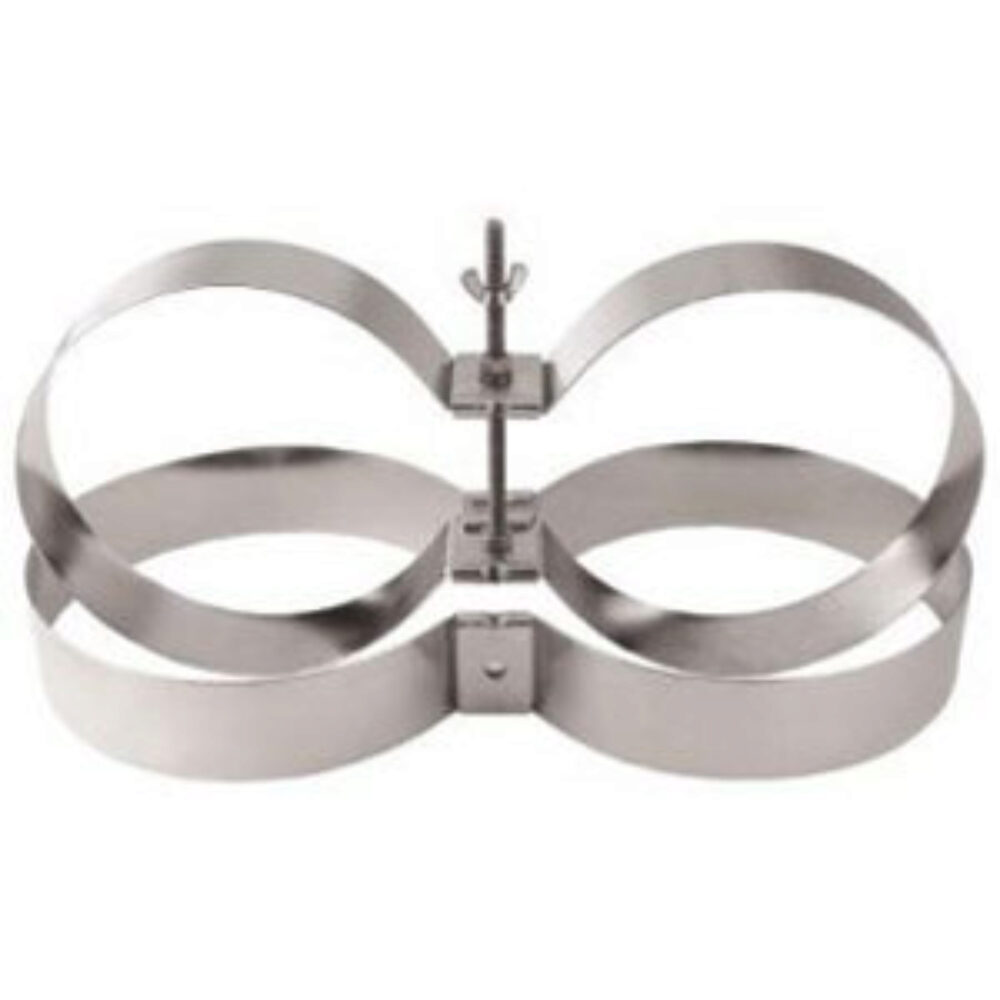

Note: Sold as a pair as pictured, to make a twin set.

(07/24 GL)
